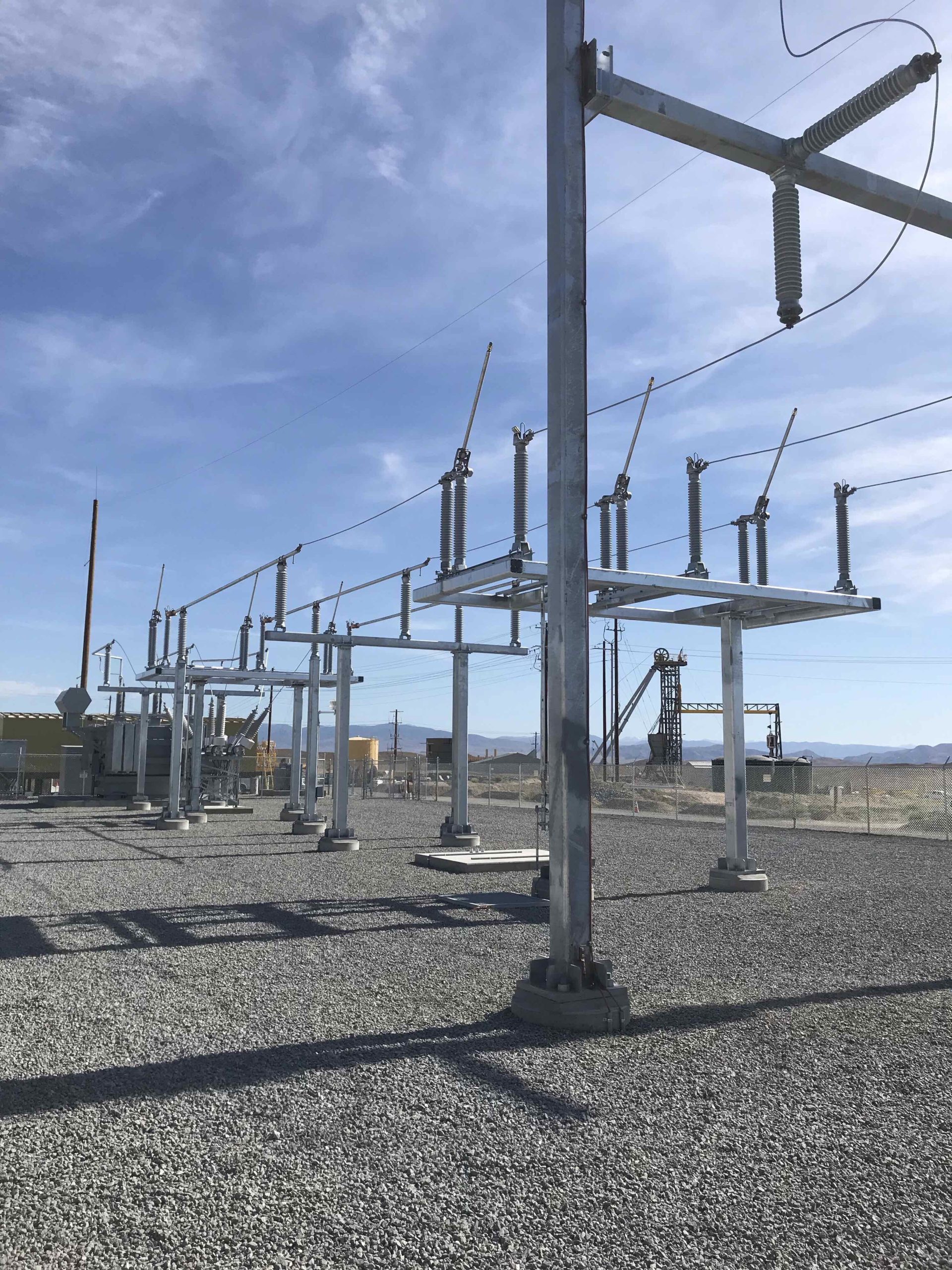

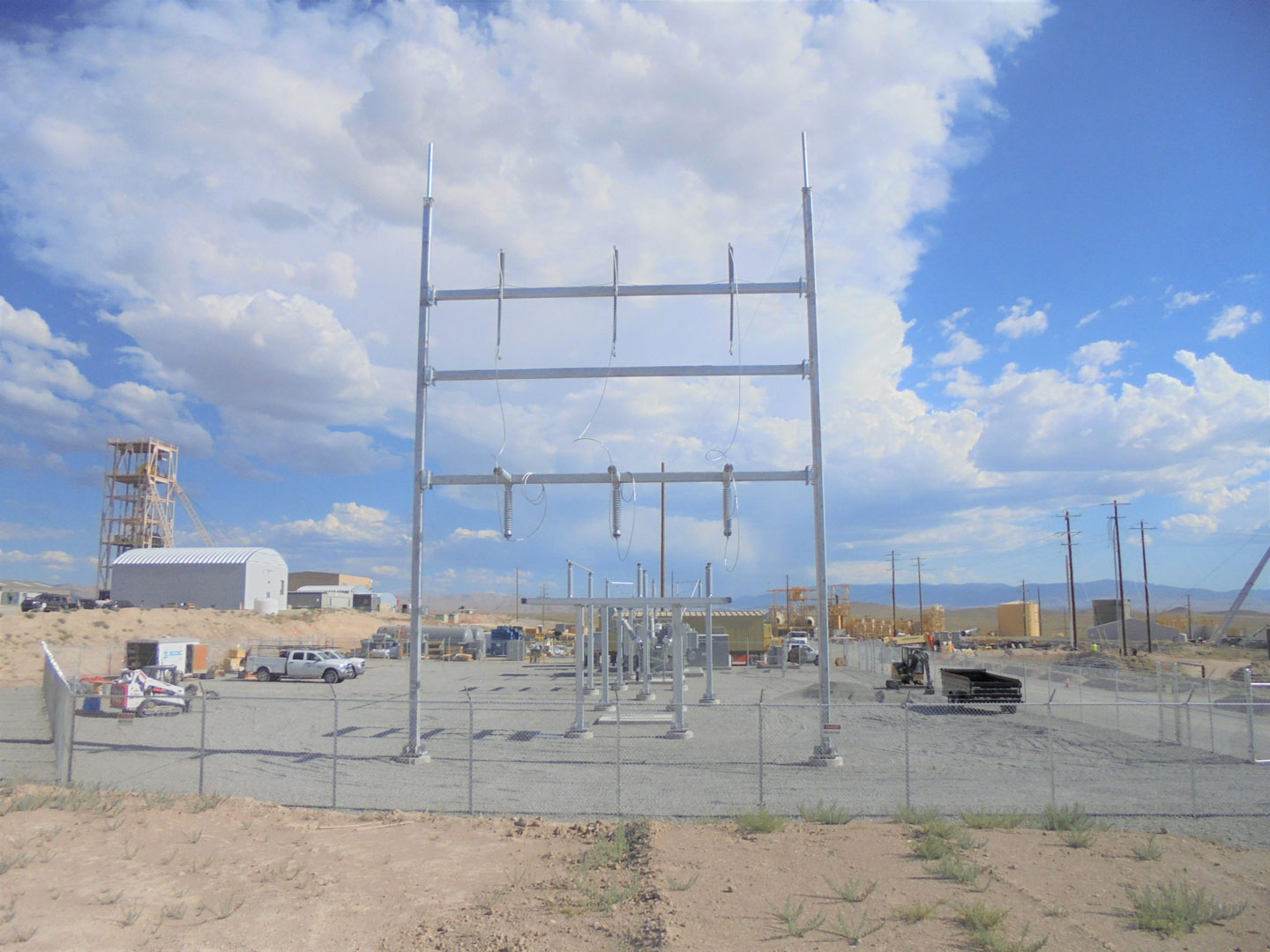

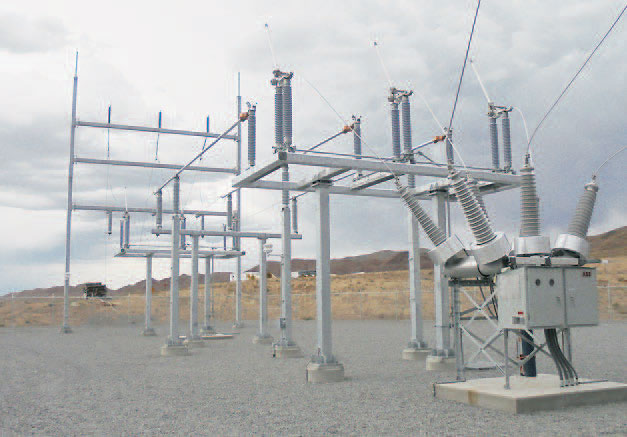

EPC Substation for Copper Mine

30/40 MVA, 120kV – 13.8kV, Six outputs with 15kV feeders.

Construction Dates:
March 2019 – July 2019

Total Project Value:
$1,978,000

Scope of Work:

  • Multi-Discipline Design.
    • Electrical- Power & SCADA
    • Civil
    • Structural
  • Arc- Flash, Short-Circuit, Relay Coordination Studies.
  • Relay/ SCADA setpoint and programming.
  • Equipment specifications.
  • On-site Construction Activities
  • Materials management and procurement.
  • Offloading/construction of control buildings.
  • System commissioning & start-up.
  • Project/Safety Management- QA/QC.
  • 3rd-party NETA testing.
