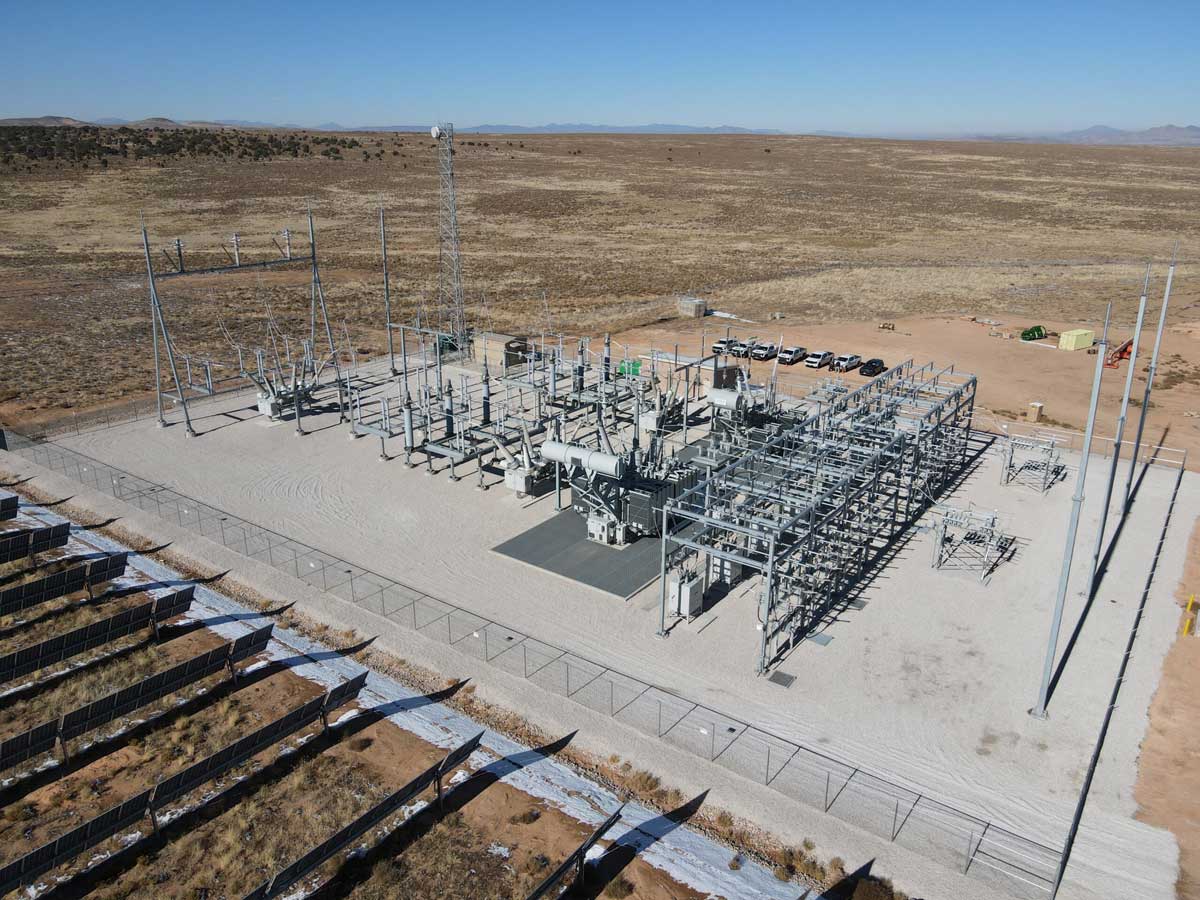

345kV PV Collector Substation with T-Line
PV Substation:
200 MVA, Two 345/34.5kV transformers, Three 345kV SF6 breakers, Seven MV collection feeder breakers arranged on two buses.
T-Line:
2.5 miles of 345kV T-line, bundled 795 Drake ACSR.
Construction Dates:
July 2022 – December 2023
Total Project Value:
$9,700,000.00
Scope of Work:
- Multi-Discipline Design
- Electrical- Power & SCADA
- Civil
- Structural
- Arc-Flash, Short-Circuit, Relay Coordination Studies
- Relay/SCADA setpoint & programming
- Equipment specifications
- On-site Construction Activities
- Materials management and procurement
- Construction of control building
- System commissioning & start-up 3rd-party testing
